Two-part High Pressure Tri-Clamp® 13MHP, AISI 304, with stainless bolts and brass nuts. Conforms to ASME-BPE Part MJ, BS 4825, DIN 32676 and ISO 1127. Easy, reliable sealing; verified 100 bar/1500 psig with 5 Nm torque. Permanently marked with unique number tied to an EN 10204 3.1 material certificate (free).
BPE-HPClamp for 63,50×1,65mm tube
High-pressure Tri-Clamp 13MHP, 63.50×1.65 mm, 100 bar test
€ 36,05
Availability: In stock
Description

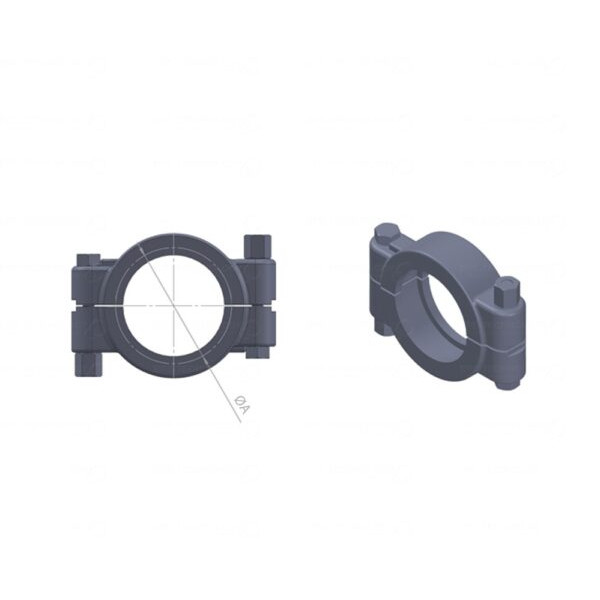

| EXTRA INFORMATION | |
| A-size | 69,50mm |
| B-size | 79,00mm |
| C-size | 89,00mm |
| Flange diameter | F=77,50mm |
| HS/HTS-code | 7307.31 |
| US - Imperial | 2.1/2" |
| Weight | 760 g |
