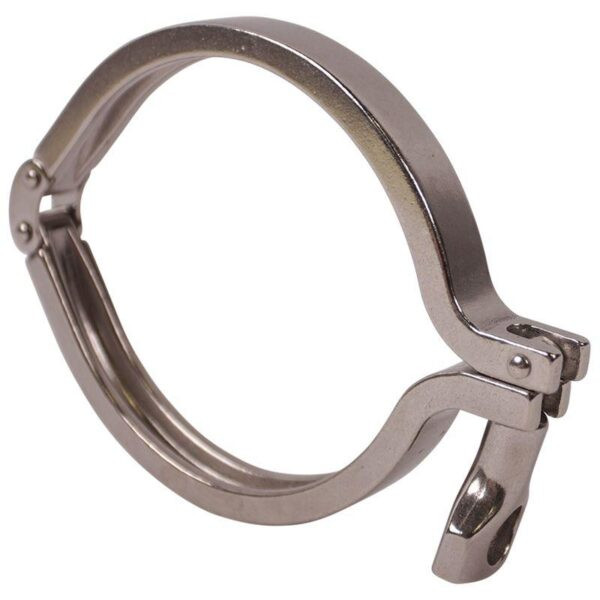

Robust Tri-Clamp® assembly type 13MHH-S with type 14 wing nut and single pivot, manufactured from AISI 304 (1.4301). Toleranced to ASME-BPE Part DT, BS 2825, DIN 32676 and ISO 1127 for reliable, easy alignment and sealing. Each clamp is permanently marked with a unique number linked to a DIN EN 10204 3.1 material certificate, supplied free of charge.
BPE-Clamp for Tube size 152,40×2,77mm
Heavy-duty AISI 304 Tri-Clamp® (13MHH-S) with wing nut
€ 32,65
Availability: In stock
Description
| EXTRA INFORMATION | |
| A-size | 156,2mm |
| B-size | 170,4mm |
| C-size | 216,0mm |
| Flange diameter | F=167,0 mm |
| HS/HTS-code | 7307.29 |
| US - Imperial | 6" |
| Weight | 880 g |
