DT-15 Short Outlet Hygenic Clamp Joint Tee 63,50 x 1,65mm WxCxW SF1

DT-15 Short Outlet Hygenic Clamp Joint Tee 63,50 x 1,65mm WxCxW SF1 - Image 2

DT-15 Short Outlet Hygenic Clamp Joint Tee 63,50 x 1,65mm WxCxW SF1

Name: DT-15 Short Outlet Hygenic Clamp Joint Tee 63,50 x 1,65mm WxCxW SF1
SKU: **SF1-DT-4.1.2-2-2500**
Availability: InStock

Short-outlet equal tee WxCxW, 63.50×1.65 mm, 316L

€ 124,50

Availability: In stock

Internal Code: **SF1-DT-4.1.2-2-2500** Category: SF1

Description

Hygienic equal tee with Tri-Clamp center outlet and weldable run, size 63.50×1.65 mm. AISI 316L; compliant with ASME BPE Part DT/MJ; tolerances to ASTM A269/A270; clamp standards BS 4825/DIN 32676/ISO 1127. SF1 finish (external Ra ≤1.0 µm; internal bright-annealed Ra ≤0.50 µm). Supplied capped/PE-bagged with permanent heat-number ID and QR/barcode. 3.1 certificate included.

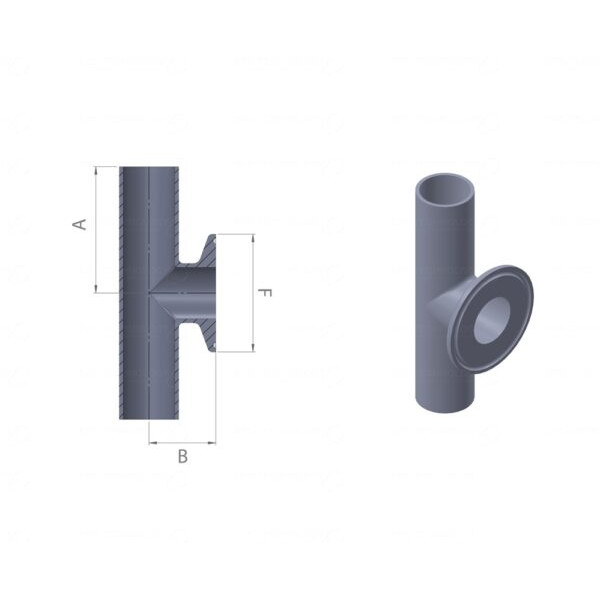

EXTRA INFORMATION
A-size	79,40 mm
B-size	47,60 mm
Flange diameter	F=77,50 mm
HS/HTS-code	7307.29
US - Imperial	2.1/2"
Weight	497 g
